Violet UV-C LED module, 280nm, 12 Nichia LEDs, 297.3 x 44.6mm, 48V, 630mW

Professional UVC solution from LEDs.de: The Violet UVC LED module

The innovative UVC technology

UVC radiation has a wavelength of approximately 280 nm, which is invisible to the human eye. It effectively kills pathogens such as bacteria, viruses and fungi by damaging the DNA of microorganisms. In the process, the Nichia LEDs of the Violet UVC LED module are particularly efficient, so that the irradiation time for decontamination is greatly reduced.

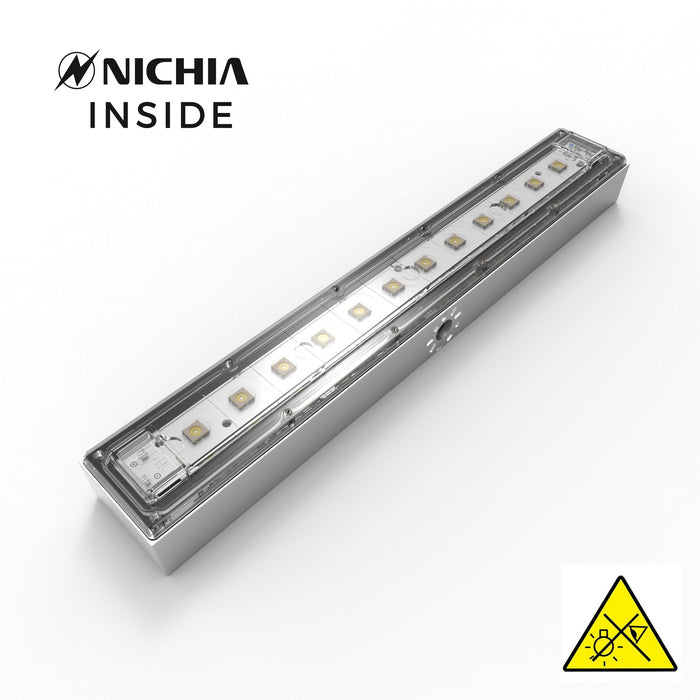

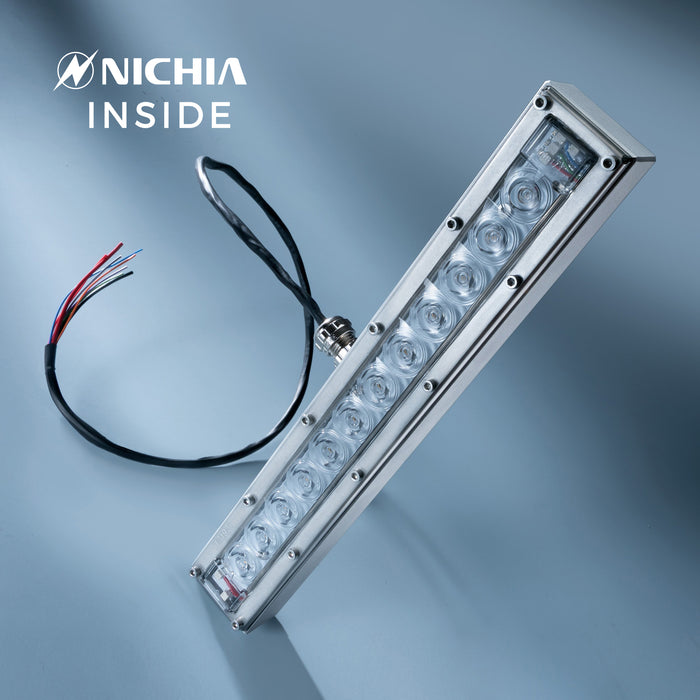

The concept of the Violet UVC LED module

This product combines all necessary components in a robust aluminium housing and also has a PowerController V2 control unit. Furthermore, three status LEDs (red, green, blue) are also integrated to provide information on the operating status of the module at all times.

Safe handling and protective measures

The safety of the user is our top priority. Therefore, it is essential to wear suitable protective clothing when handling the Violet UVC LED module and to avoid any skin or eye contact.

• Always use: safety glasses, gloves, face shield and UV-impermeable clothing
• Pay attention to: Surrounding persons and reflective surfaces
• In case of exposure: Treat the affected areas with appropriate cream or consult a doctor

The performance of the Violet UVC LED module

The Violet UVC LED module is designed for operation with constant voltage and offers a radiation output of 630 mW. The high power ensures fast and effective decontamination of surfaces.

FAQ about the Violet UVC LED module

1. What protective measures are necessary when using the Violet UVC LED module?
   When handling the module, you should wear protective goggles, gloves, face shield and UV-repellent clothing.


2. What is the radiation power of the Violet UVC LED module?
   The module has a radiation power of 630 mW.


3. What power does the module emit?
   The module emits UVC radiation with a wavelength of 280 nm.

The commitment of LEDs.de

As part of LUMITRONIX, a leading provider of LED solutions, we place special emphasis on quality and sustainability. Many of our durable products, such as the Violet UVC LED module, are manufactured directly in Germany, which stands for first-class quality and environmentally friendly production conditions.
