Optonica LED RGB/RGBW controller, 4 channels

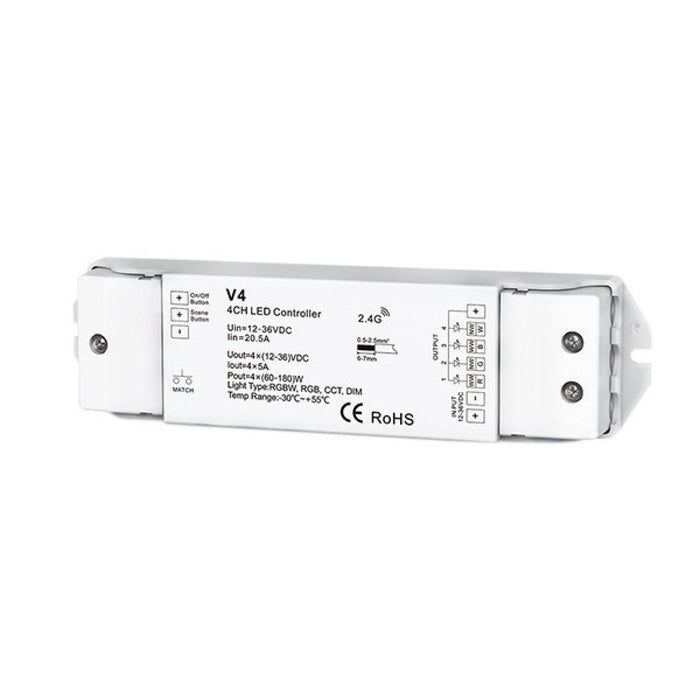

Optonica LED RGB/RGBW Controller, 4 Channels - V4, Constant Voltage

Creative and flexible lighting solutions have never been easier to achieve with Optonica's V4 four-channel LED RGB/RGBW controller. The controller offers a wide range of functions that significantly enhance the lighting experience

Realising the magic of colour play is easy

Optonica's four-channel LED RGB/RGBW Controller V4 provides versatile lighting control for constant voltage LED strips. With 30 pre-programmed modes, including static colours, jump mode, flash mode and smooth colour change, the controller offers an impressive variety of lighting possibilities.

LED control in a class of its own

Thanks to its intuitive operation and flexible application possibilities, the Optonica V4 proves to be a reliable and powerful controller. It enables the control of 1x RGB/RGBW, 2x Tunable White or 4x single colour LED strips. In addition, an external pressure switch can be connected and the necessary remote control is available separately.

• 4 channels: Versatile lighting control
• Dimming function: Stepless light adjustment
• Control options: 1x RGB/RGBW, 2x Tunable White, 4x single colour
• Input voltage: 12 - 36 V
• Output voltage: 12 - 36 V
• Max. Output current: 5 A per channel

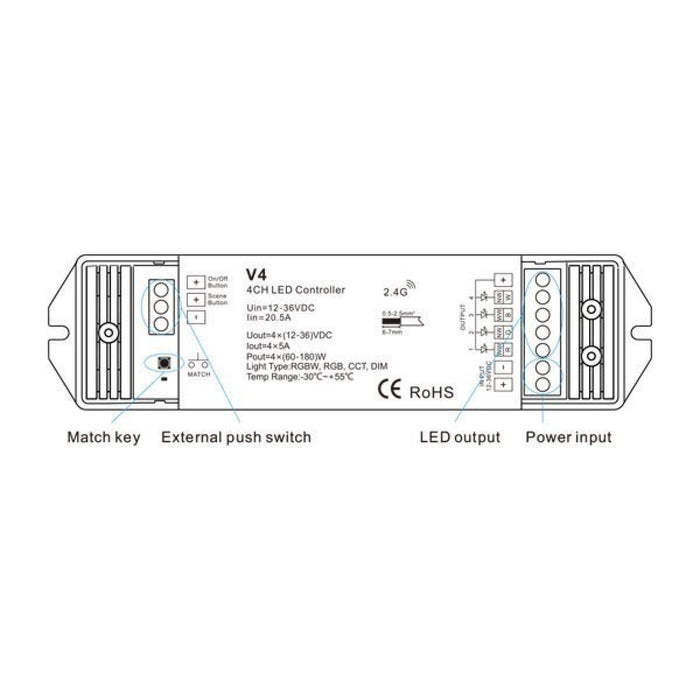

• Functional connections: External pressure switch possible

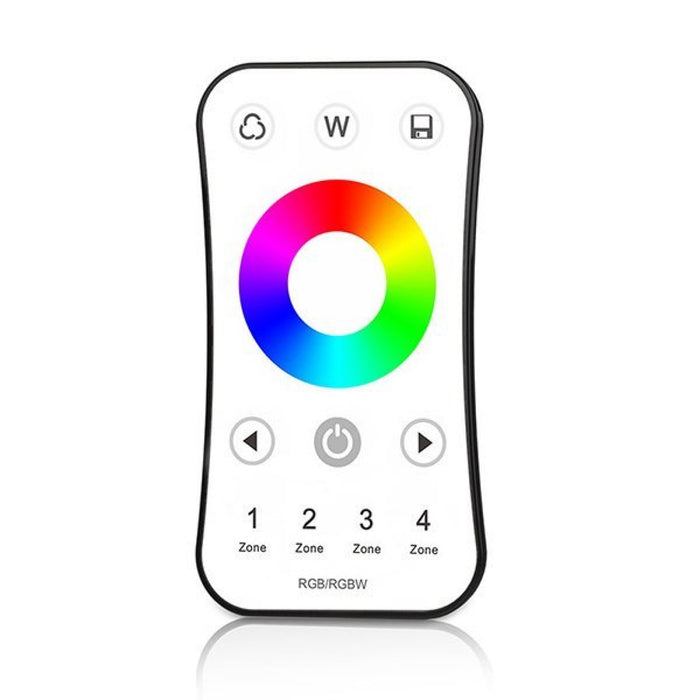

• Operation: Remote control required (sold separately 37600)
• Protection class: IP20

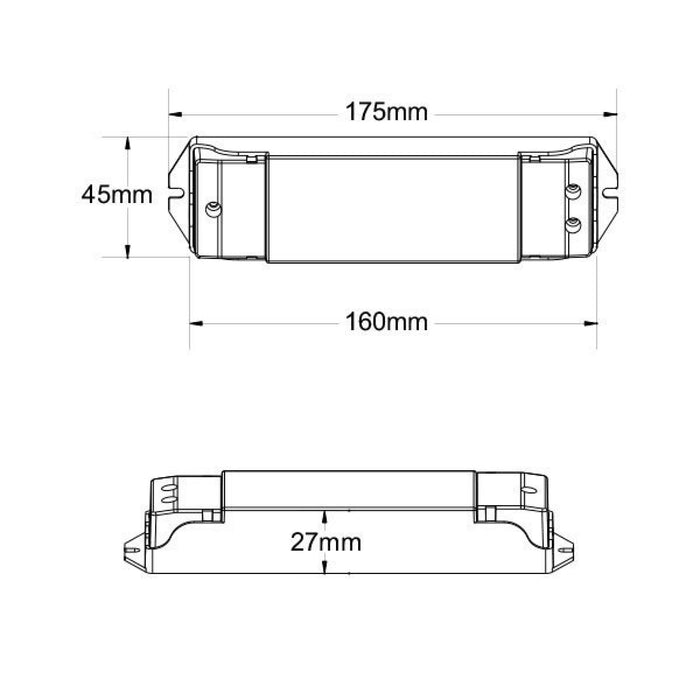

• Dimensions (L x W x H): 175 x 45 x 27 mm

Optonica - Leading in LED technology

Optonica is a dynamically developing brand that has established itself as a market leader in LED lighting. Registered on the Bulgarian market since 2011, the inquisitive and highly trained team always provides the latest technologies. With a wide range of high-quality LED products, Optonica has established itself as a major supplier in the industry.

Questions and answers

1. What voltage source does the controller require?
   The controller requires a constant voltage source of 12 - 36 V.


2. How many channels does the controller have?
   The controller has four channels.


3. Do I need a remote control to operate the controller?
   Yes, a remote control is required for control and is available separately.

As the operator of the online shop LEDs.de and specialist for LED lighting solutions, we at LUMITRONIX focus on high quality and innovative design. Take advantage of our many years of expertise and our wide range of products for your perfect lighting solution.

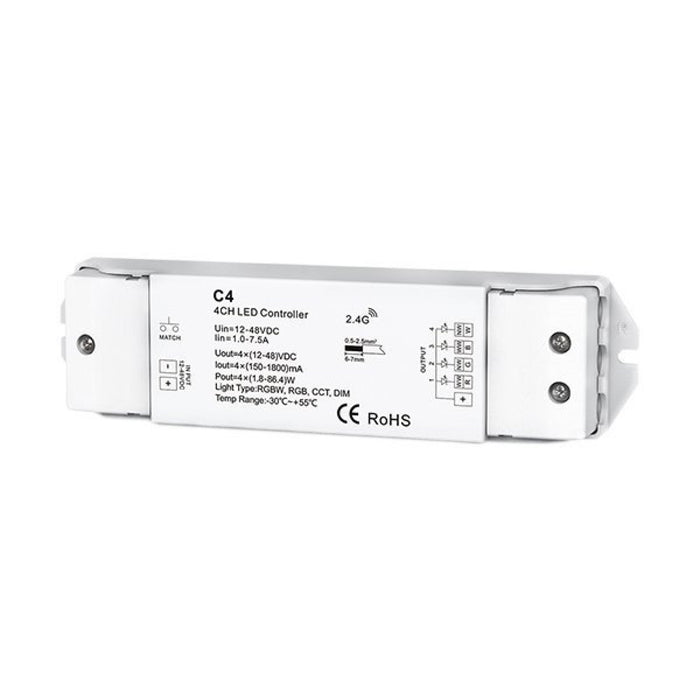

Optonica LED RGB/RGBW Controller C4: Versatility and Precision

The 4-channel Optonica LED RGB/RGBW Controller C4 offers vivid lighting scenarios and precise colour control in an attractive, user-friendly unit. Universally applicable, this controller scores with its various pre-programmed modes and access to high-power LEDs

Optonica C4 - A colour miracle for high-power LEDs

The C4 controller from Optonica is a multi-talent in the field of LED control. With 30 pre-programmed modes, including static colours, jump mode and the smooth colour change, you have a multitude of options for creative and individual lighting designs. You can control up to 13 high-power LEDs or LED modules per channel to create spectacular lighting effects. The controller also supports the connection of an external push switch and can be controlled with an optionally available remote control.

excellent quality from Optonica

Optonica, registered in 2011 in Bulgaria, is now one of the leading suppliers in the LED lighting sector. A team of qualified and dedicated specialists ensures that Optonica always stays at the cutting edge of LED technology and offers innovative as well as high-quality products. As an important importer and supplier of various LED products, Optonica has consistently established itself in the market.

Functions and features of the 4-channel controller C4

• Number of channels: 4
• With dimming function: Yes
• Controllable LEDs per channel: Up to 13 high-power LEDs
• Input voltage: 12 - 48 V
• Output current: 300 mA per channel
• Max. Output power: 86.4 per channel
• Connection of external pressure switch: Possible
• Remote control: Available separately
• Protection class: IP20
• Dimensions: (L x W x H): 175 x 45 x 27 mm

FAQ for the Optonica LED RGB/RGBW Controller C4

1. Do I need a remote control to operate the controller?
   Yes, a remote control is required and available separately.


2. Can I install the controller in an outdoor area?
   No, the controller has a protection rating of IP20 and is therefore only suitable for indoor use.


3. How many LEDs can I control per channel?
   Up to 13 high-power LEDs can be controlled per channel.

At Lumitronix we are proud to offer you products like the Optonica LED RGB/RGBW Controller C4. With over 20 years of experience and market-leading machine technology, we deliver high-quality LED solutions. Furthermore, with our durable products manufactured directly in Germany, we contribute to ecological and economic sustainability
