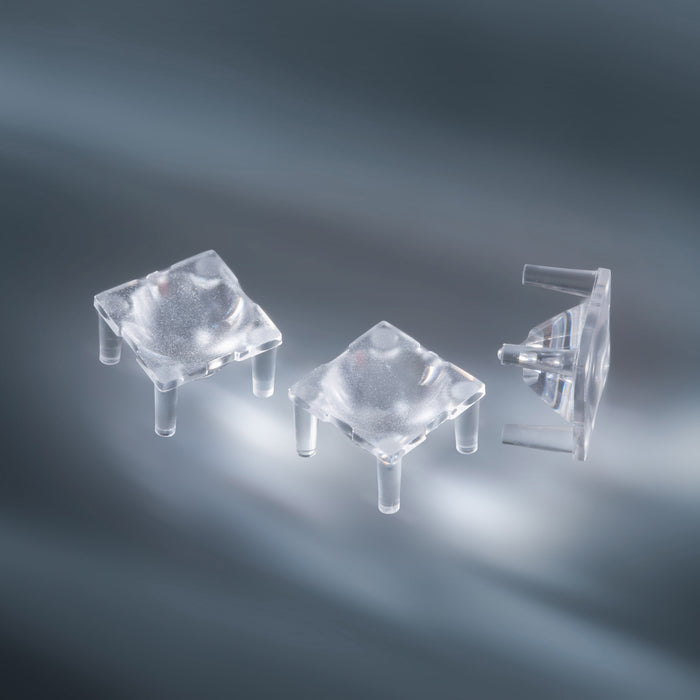

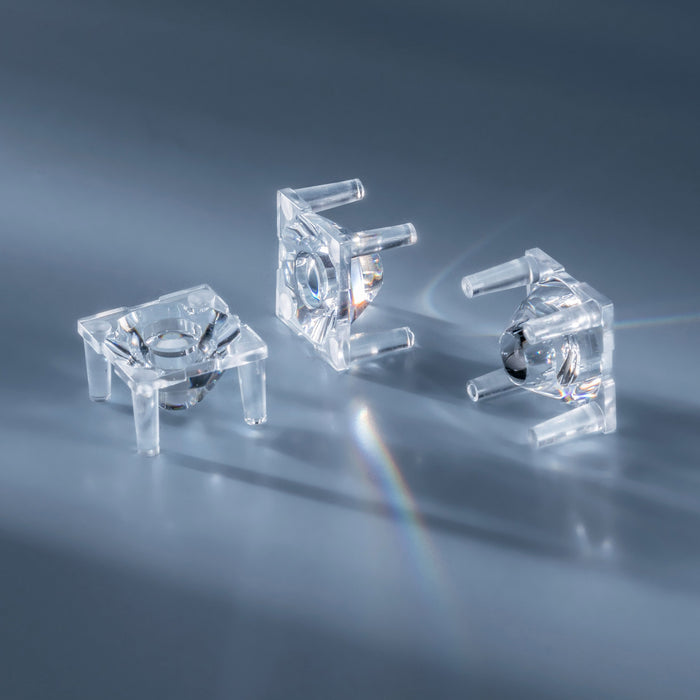

Carclo 10mm LED lens: Optimised for your requirements
The Carclo 10mm square LED lens is specifically designed to work with Nichia, Cree and many other LED brands. It offers different beam angles, making it perfect for a wide range of lighting applications.
Excellent performance and flexibility
The Carclo LED lens has a number of features that set it apart from other lenses on the market. It is compatible with a wide range of LEDs, allowing you to achieve the optimum light output for your specific requirements.
All-round optical solutions from Carclo
Carclo is a world leader in optical solutions with a focus on innovation and quality. Every lens made by Carclo is manufactured and tested to the highest standards to ensure consistent, reliable performance.
Our partnership with Carclo enables us to offer you excellent terms and tailored advice. Benefit from our extensive product knowledge and industry experience.
Product highlights
- Versatile designs: choose from different beam angles to achieve the perfect light output for your application.
- Easy installation: The lens can be glued directly onto the LED or attached with Carclo lens holders. Please note not to press the lens onto the LED with too much pressure.
- Optimised light quality: Matched to LED brands such as Cree, Osram, Nichia and Lumileds to achieve optimum light results.
Product related FAQ
- Do I need to use a special adhesive to attach the lens?
It is recommended to use a suitable adhesive. Be careful not to press the lens onto the LED with high pressure.
- How do I select the appropriate beam angle for my application?
This depends on the distance and the desired light pattern. In general, narrower beam angles are suitable for longer distances, while wide beam angles are ideal for short distances.
- Is the lens compatible with all LED brands?
The Carclo lens is compatible with many leading LED brands, including Cree, Osram, Nichia and Lumileds. However, it is recommended to check the compatibility information before purchasing.
LUMITRONIX has been producing sustainable and durable LED products for 20 years. Our innovative production lines in Germany, using market-leading machine technology, enable us to offer customised solutions and ensure a high standard of quality.
The high quality Carclo 10mm LED lens - designed for best performance at diverse beam angles
The Carclo 10mm LED lens is the result of the finest British craftsmanship, optimised and refined through modern technology and carefully considered design principles. Optimised for users of LED lighting solutions such as Nichia, Cree and more, this lens offers excellent results, particularly at narrow beam angles of 9°-33°Benefit from the versatility of Carclo's lens range, which offers the right lens for every lighting application. Choose your lens based on radiation characteristics and compatibility with the LED. With us, you will find exactly the right solution for your individual requirements.
A versatile companion for your lighting projects
- 60384: Wide spot frosted, ideal for short distances and a wide beam angle
- 60386: Plain tight, designed for long distances and a very narrow beam angle
- 60387: Frosted medium, perfect for short distances and a narrower beam angle
- 60388: Elliptical, elliptical light pattern, especially suitable for wide-area illumination
Compatibility does not fall by the wayside
The Carclo 10mm LED lens is compatible with a wide range of LED products. The following LEDs support the use of our lens:
- Cree: XP-E, XP-G
- Osram: Oslon SSL
- Nichia: 119, 219, E17A
- Lumileds: Luxeon Rebel, Luxeon C, Luxeon ES Rebel
- Seoul: Z5
We are proud to be the official distributor of Carclo.
FAQ about the Carclo 10mm LED lens
- How is the lens attached?
The lens can be glued directly onto the compatible LEDs or attached using the Carclo lens holders.
- Which adhesive is suitable for attaching the lens?
Please select a suitable adhesive. Make sure that the lens is not pressed onto the LED with high pressure.
- Which radiation characteristics are possible?
There are various possibilities: From narrow to wide to elliptical radiation characteristics, everything is possible. The exact value is determined by the combination of LED and lens.
As a specialist for LED lighting solutions with 20 years of experience, we offer a wide range of products. We are proud to manufacture our products directly in Germany and to adhere to the highest standards of sustainability. For more information on our products and services, especially for corporate customers, please visit our business customer page lumitronix.com.
Carclo 10mm LED lens: High-quality light guidance for versatile lighting applications
The square 10mm LED lens from Carclo, a world-leading manufacturer of optical components, offers precise light guidance with different beam angles. Optimised for leading LED manufacturers such as Nichia or Cree, these lenses set new standards in LED lighting technologyIn our range you will find lenses with narrow or diffuse beam angles to suit your lighting needs and desired lighting effect. They are an ideal solution for the realisation of individual lighting concepts and enable the creation of wide or narrow beam, diffuse or directional light.
Versatility and precision with Carclo optics

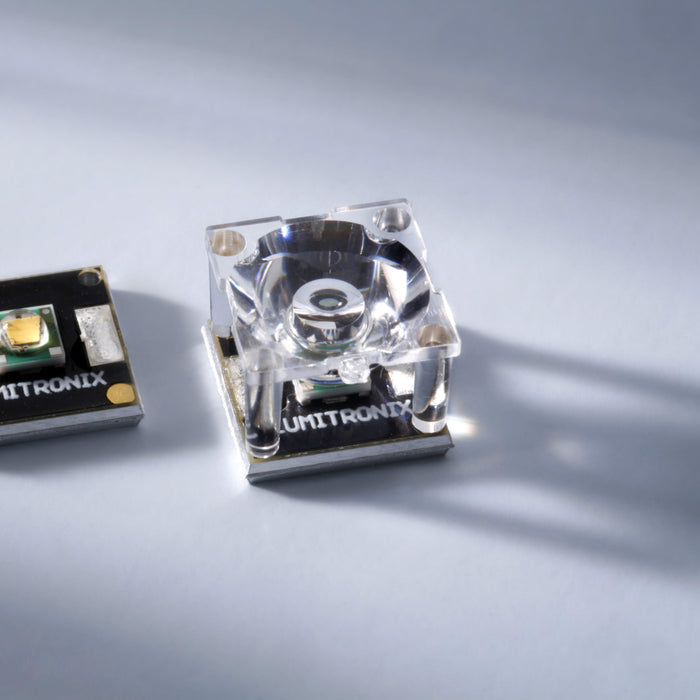

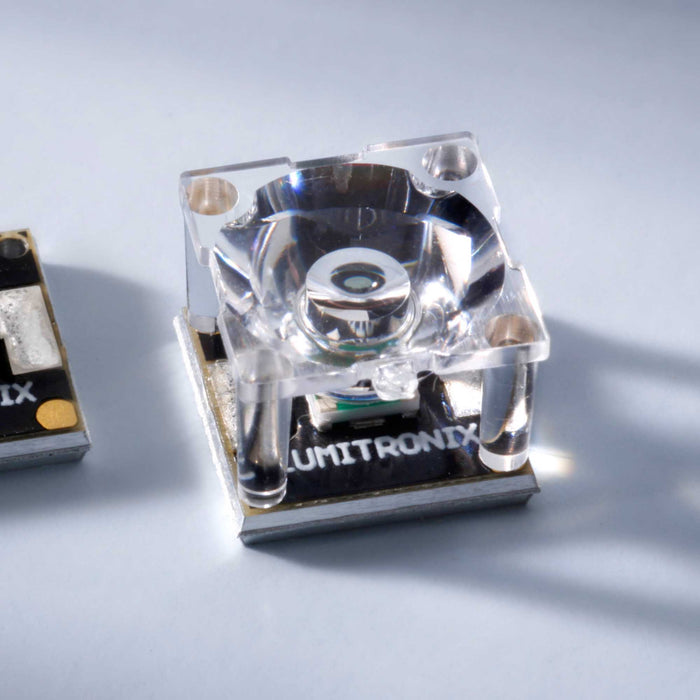

The Carclo product range is characterised by impressive versatility and precise distribution. The square lenses with a diameter of 10 mm can be placed on different LEDs to create a wide variety of lighting effects. They can be glued directly onto the LED or attached with a specific lens holder from Carclo.
Unique features of the Carclo LED lenses
- Variants: Different models for different lighting requirements
- Beam pattern: From narrow to wide, diffuse or directional
- Diameter: 10mm, square shape
- Flexibility: Suitable for various LED types
Durable quality and precision from Carclo
As an official distributor of Carclo, we offer you a wide portfolio of these high quality optics. Carclo attaches great importance to precision and quality. That is why the company's products are known for their durability and reliability. Benefit from this quality promise and our attractive conditions as a distributor of Carclo.
FAQ about the Carclo 10mm LED lens
- Which LED types can be used with the lens?
Cree XP-E, XP-G, Osram Oslon SSL, Nichia 119, 219, E21A, Lumileds Luxeon Rebel, Luxeon C, Luxeon ES Rebel and Seoul Z5.
- How do I attach the lens to the LED?
The lenses can be glued directly to the LED or attached with a specific lens holder from Carclo.
- Is a special adhesive needed for mounting?
Yes, when using adhesive, care should be taken to select an adhesive suitable for this purpose.
Benefit from our extensive expertise as an LED specialist and our commitment to quality and customer satisfaction. With our LED technologies and products, we support small businesses, tinkerers and creative minds in the implementation of their lighting projects. Discover the possibilities that Carclo lenses open up for you in combination with our expertise and high-end production lines.
Carclo 10mm LED lens: Square, Various beam angles, Perfect for Nichia and Cree
This product from Carclo offers you optimally matched lenses for the most diverse lighting requirements. The square lens with a diameter of 10mm can be used variably and is predestined for use with well-known LED manufacturers such as Nichia and Cree
What is special about Carclo lenses
Carclo lenses are characterised by their high compatibility and easy installation. Whether glued directly onto the LED or attached by means of a lens holder, installation is easy thanks to suitable gluing options. But be careful: avoid high pressure during installation to prevent damage
Carclo 10mm LED lens: Versatile features
The Carclo lens offers different beam characteristics for different distance ranges and illuminated area sizes. The beam angle and light output can vary depending on the LED model selected.
Various applications
- 60384: Wide spot frosted, for short distances, wide beam angle
- 60386: Plain tight, for long distances, very narrow beam angle
- 60387: Frosted medium, for short distances, narrow beam angle
- 60388: Elliptical, elliptical light pattern, ideal for wide-area illumination
Compatible with various LED manufacturers
- Cree: XP-E, XP-G
- Osram: Oslon SSL
- Nichia: 119, 219, E21A
- Lumileds: Luxeon Rebel, Luxeon C, Luxeon ES Rebel
- Seoul: Z5
Carclo - Quality made in UK
As a recognised manufacturer of optical lenesn, Carclo relies on sophisticated development and meticulous production. This is characterised by high standards and a constant striving for improvement.
We are a proud Carclo distributor and are pleased to be able to offer you this quality at attractive conditions.LUMITRONIX - Your partner for high-quality LED solutionsFAQ about the Carclo 10mm LED lens
- Are there any restrictions when mounting?
Yes, it is important that the lens is not pressed onto the LED with high pressure to avoid possible damage.
- How do I choose the right lens for my application?
The choice of lens depends on the desired beam pattern and compatibility with the LED used.
- Can I glue the lens onto other LEDs?
Yes, the lens can be glued onto any compatible LED. You will find the compatibility list in the product description.
At
leds.de and Lumitronix, we focus on sustainable products and environmentally friendly production methods. With our reliable, long-lasting LED products, we want to bring not only light but joy into your life - and always with our social responsibility in mind.
Carclo 10mm LED lens: Optimised beam angle for your PowerBar V3 LED bars
Find out now why the 10mm LED lens from Carclo is the ideal complement for your PowerBar V3 LED bar from LUMITRONIX®. With this lens, you optimise the beam angle of your LED bars and achieve improved light distribution. Within the product family of Carclo Optics, one of the world's leading manufacturers of optical technology, this lens is characterised by its high quality and easy handling. Particularly noteworthy: We are an official Carclo distributor and thus guarantee attractive conditions and optimal serviceAchieve the best light distribution with the Carclo LED lens
The Carclo lens, specially designed for the PowerBar V3 LED batten luminaire, enables optimum results in terms of light distribution. Make your lighting project a success and benefit from the advantages of our 20 years of experience in a wide range of industries and our specialised high-end production lines, which we make available to you
here Reliable quality from Carclo Optics
Carclo Optics stands for high-quality optical technologies. Since its foundation in 1936 by Arthur Kingston, the inventor of the plastic lens, Carclo Optics has established itself in the global market. The locations in Great Britain and the USA have their own design departments, which ensures solution-oriented and individual support
Details of the Carclo lens at a glance
- Size: 10 x 10 mm
- Attachment: by means of adhesive
- Compatibility: with most PowerBar V3 LED strips (except UV and infrared)
- Radiation angle: around 14
FAQ about the Carclo 10mm LED lens
- How do I attach the Carclo lens to the PowerBar V3 LED strip?
You can easily attach the lens to the bar using a suitable adhesive.
- What beam angle do I achieve with the Carclo lens?
The average beam angle with the PowerBar V3 strips is approximately 14°. Note that the exact value may vary depending on the LED.
- Are there any restrictions on the compatibility of the lens with the PowerBar V3 LED strips?
The lens is compatible with most PowerBar V3 bars, with the exception of bars with UV and infrared LEDs.
Our tip: Refer to the data sheet in the download area to achieve the best results for your individual needs.
